RECON-F8

A New Class of Lightweight UAV Scanner
RECON-F8 RENDER
2-3.5 cm @ 120 m
RMSEz System Accuracy
2.5 cm @120 m
RMSDz Instraswath Precision
380 m
Max AGL @ 20% Reflectivity
2.2 kg
Weight
360°
Field of View
miniRANGER 3
Scan Angle(s)
miniRANGER 3

KEY FEATURES

UAV
Mining
Rail
Construction
Mapping
Oil & Gas
Quick Release
SE8

The RECON-F8 is an advanced, lightweight aerial LiDAR surveying solution designed specifically for small to mid-size drones such as the DJI M350. The RECON-F8 seamlessly combines cutting edge lightweight LiDAR technology with a high-accuracy drone optimized GNSS-INS system and an industrial-grade full-frame orthophoto camera all in a compact survey-grade 3D laser mapping solution. Combined with Phoenix LiDAR flight planning and post processing software, the RECON-F8 an efficient and cost effective solution for 3D data acquisition and processing.

Weighing in at just 2.2 kg, the Recon-F8 is ideal for small to midsize drones such as the DJI M350

• Integrated 45 MP full-frame calibrated orthographic RGB camera provides high resolution image mapping textures for efficient 3D model reconstruction with realistic point cloud colorization
• The powerful laser range capability combined with a wide 100° horizontal field yields a 30% – 40% increase in data acquisition efficiency over competing solutions with a narrow 75° FOV

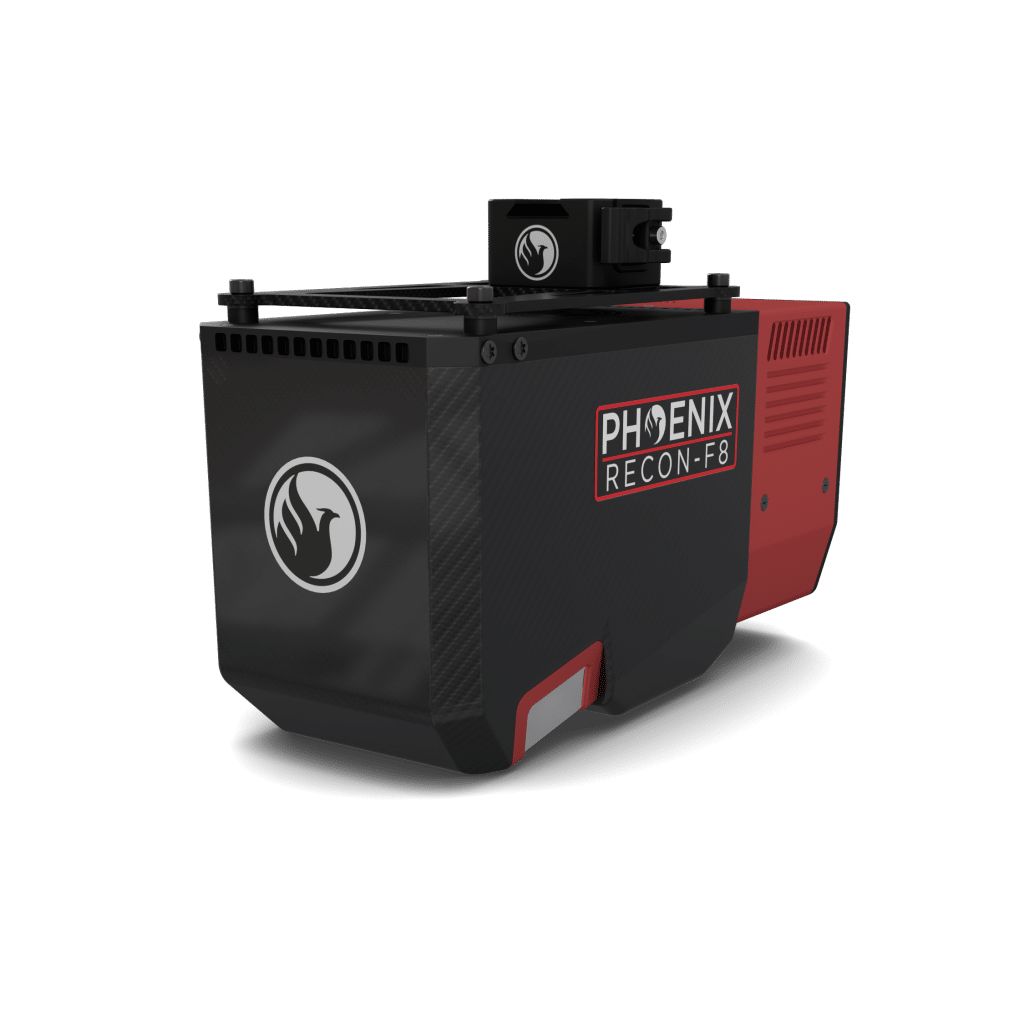

RECON-F8 RENDER - BOTTOM
The RECON F8 in aerial configuration easily integrates on M350 and other small mutli-rotor drones.

Full specifications

Specification
Performance
Pulse Repetition Rate (PRR)
100 to 2000 kHz
Scan Rate
30 - 300 lines/second
Field of View
100°
Laser Wavelength
1535 nm
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Max Echoes/ Returns per pulse
7
Dimensions
24.0 x 10.2 x 12.2 cm
Operating Voltage/ Power
14-30 VDC / 50 W
Operating Temps
-20 - +55° C
Beam Divergence
0.5 mrad @ 1/e
Sensor Precision
5mm One sigma @ 100m
Laser Scanner Model
F8

(1) Approximate values based on PLS test methods described at
https://docs.phoenixlidar.com/accuracy-standards-and-quantification.
(2) Using a 100° max downward field of view.
(3) Expected RMSEz when following the PLS recommended acquisition
& processing workflow and ASPRS check point guidelines.
(4) Flat surfaces with >20% reflectivity at the laser’s wavelength.
(5) Estimated post-processed accuracy with IMU-27.

(*) Laser accuracy is the degree of conformity of a measured quantity to its actual (true) value.
(**) Laser precision is the degree to which further measurements show the same results.

Accessories & Options

Drone Kits

Dimensions

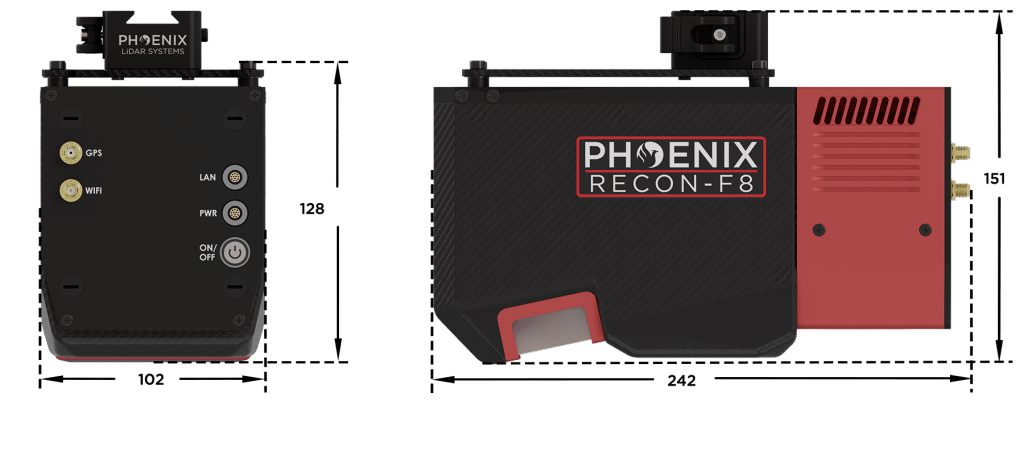

RECON-F8 DIMENSIONS RENDER
FRONT

FRONT
Laser Scanner
Quick Release Mount

RECON-F8 RENDER

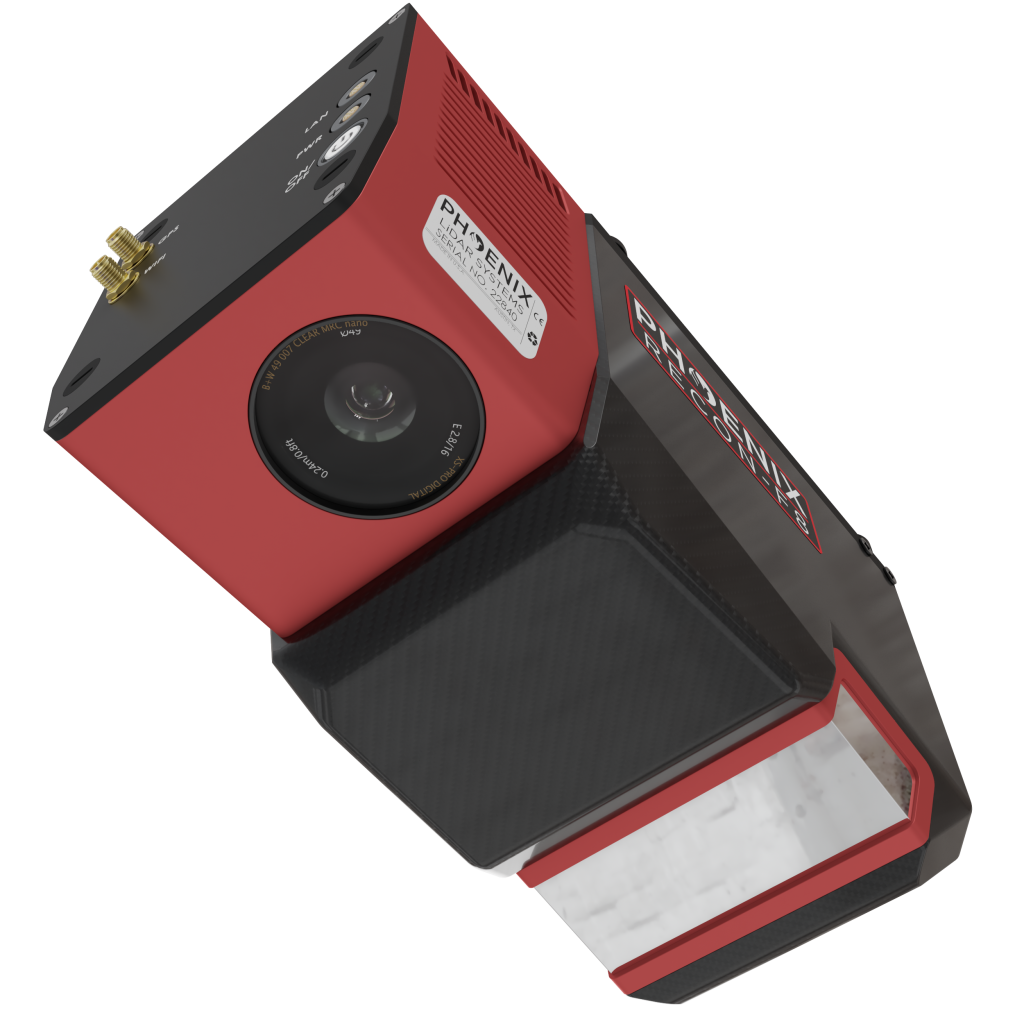

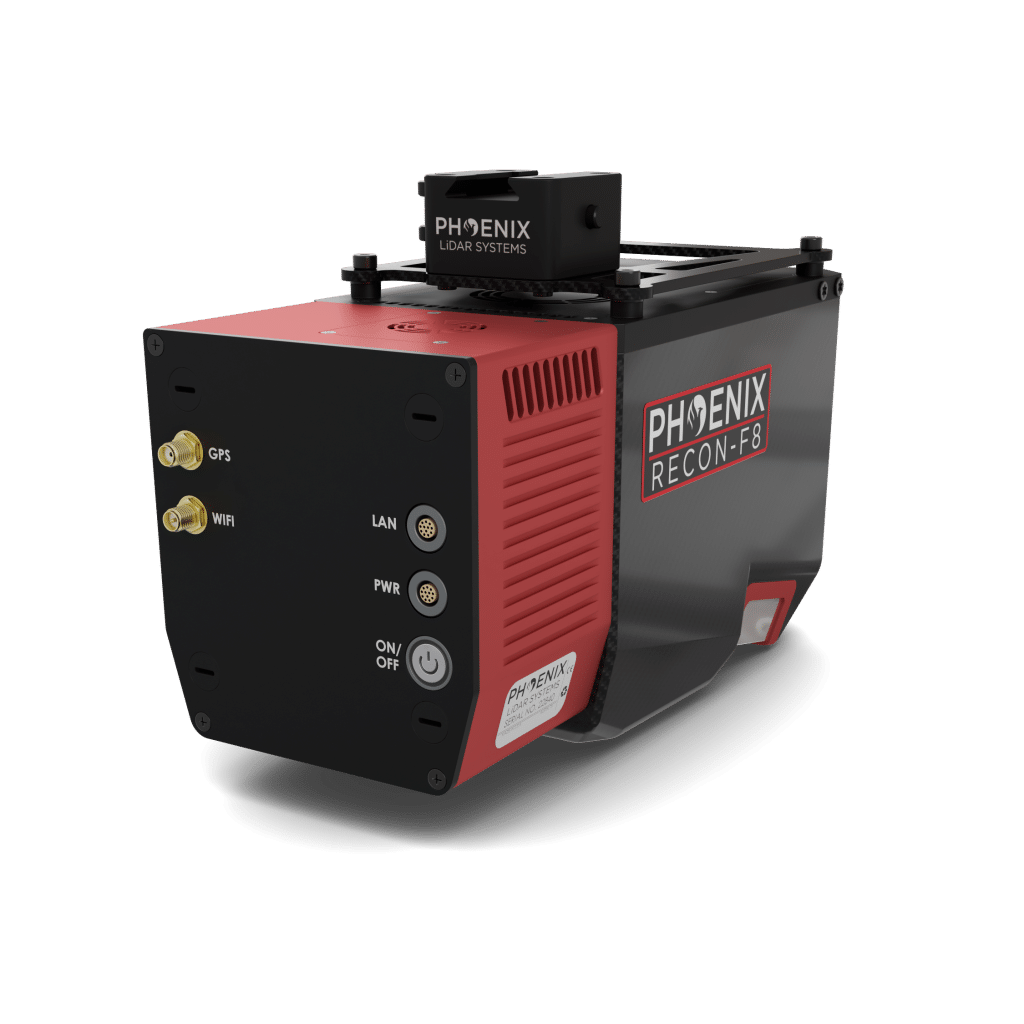

RECON-F8 RENDER - BACK
REAR

REAR
Power Button
Status LED
GPS Antenna
WiFi Antenna
Camera

M300/M350 Integration

Automated Post-Processing in the Cloud
CAPTURE | POST-PROCESS | ANALYZE | SHARE
Meet LiDARMill, the first cloud-based, LiDAR platform for post-processing, reporting, and hosting.

LiDARMill enables surveying teams to take advantage of precision laser mapping without investing in expensive software & training.
