RANGER-UAV22 LITE

Powerful and lightweight 360° FOV LiDAR for drones
Phoenix LiDAR's Ranger LR Lite System
1.5-3 cm
RMSEz @ 120 m Range
1200 kHz
Pulse Rate
490 m
Rec. Max AGL
755 m
@ 20% Reflectivity
4.15 kg
Weight
360°
Field of View
RANGER UAV
Scan Angle(s)
RANGER UAV

KEY FEATURES

UAV
Helicopter

Vehicle
VTOL

Backpack


Utilities
Rail

Construction
Mapping

Oil & Gas


Quick Release


Air NavBox


SE8



The RANGER-UAV22 LITE adds high pulse rate measurement capability to a scanner that excels at measurement accuracy. Ideal for completing UAS missions with the highest degree of data quality, this member of the RANGER lineup is vehicle-flexible and is an excellent choice to suit many roles. High-density UAS missions, detailed mobile mapping projects, and even low-altitude piloted aircraft surveys can all be conducted.

This system is available in UAV, VTOL, helicopter, vehicle, and backpack configurations, depending on your needs.

The RANGER UAV Lite in aerial configuration easily integrates on the M600 and other medium mutli-rotor drones.

Full specifications

Specification
Performance
Laser
1550 nm
Beam Divergance
1.5 m at ≥1 MHz PRR
Scan Speed
10 - 200 lines/second
Laser Pulse Repetition Rate PRR (1) (5)
1200 kHz
Max Return Count
15
Horizontal Field of View
360°
Accuracy Position
1 cm + 1 ppm GNSS baseline RMS horizontal
Max. Operating Flight Altitude AGL (2) (5)
490 m
Max. Measuring Range (3) (4) @ 20% Reflectivity
775 m
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Overall Dimentions
23.5 x 18.0 x 18.7 cm
Operating Voltage
14-28 VDC
Power Consumption
75 W typical
Weight
4.15 kg / 9.15 lbs
Operating Temperature
0 - +40° C

(1) Rounded values.
(2) Setting of intermediate PRR values possible.
(3) Typical values for average conditions. Maximum range is specifi ed for fl at targets with size in excess of the laser beam diameter, perpendicular angle of incidence, and for
atmospheric visibility of 23 km. In bright sunlight, the max range is shorter than under overcast sky.
(4) Ambiguity to be resolved by post-processing.
(5) Flat terrain assumed, scan angle +/- 45°.
(6) If more than one target is hit, the total laser transmitter power is split and, accordingly, the achievable range is reduced.

Accessories & Options

Drone Kits
Camera Options
Vehicle Mount
Ranger UAV 22 Flex Backpack integration kit
Backpack

Dimensions

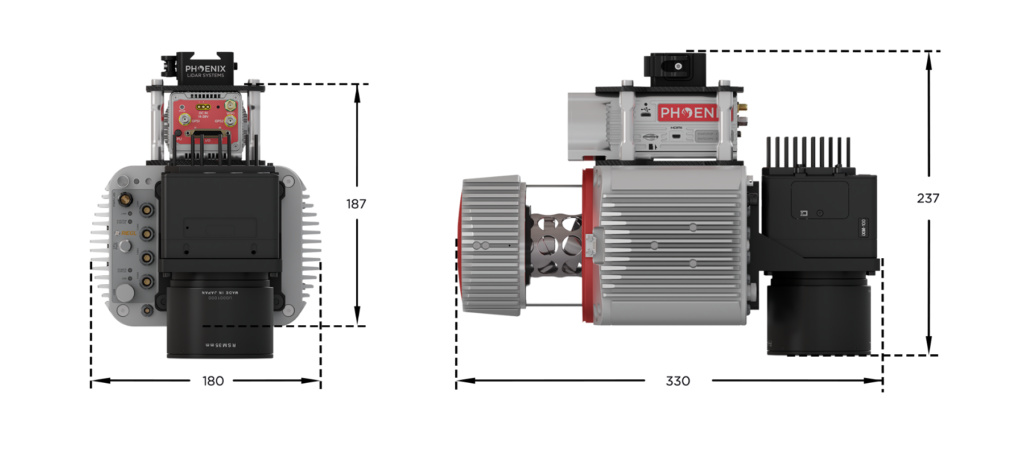

Ranger LR 22 Lite LiDAR System Dimensions

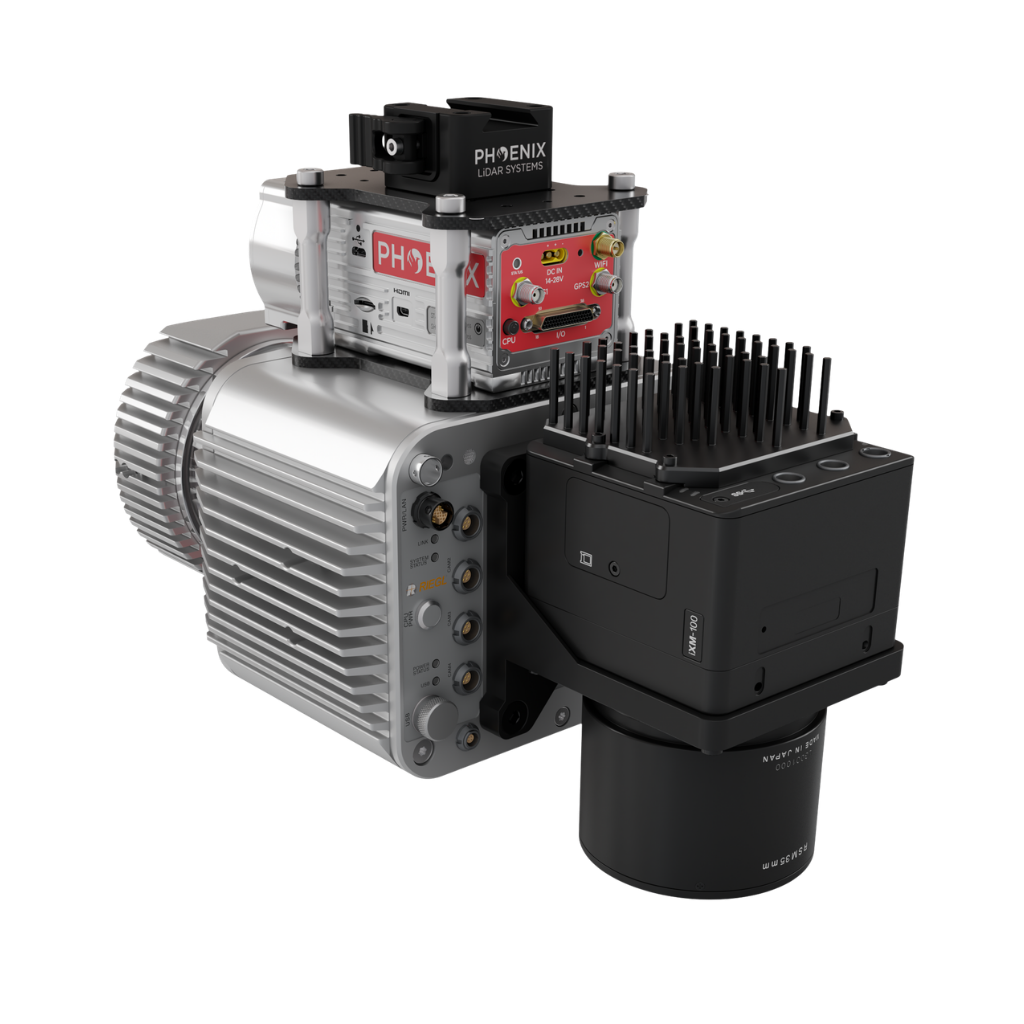

FRONT/LEFT

FRONT
Laser Scanner

LEFT
USB
SD Card

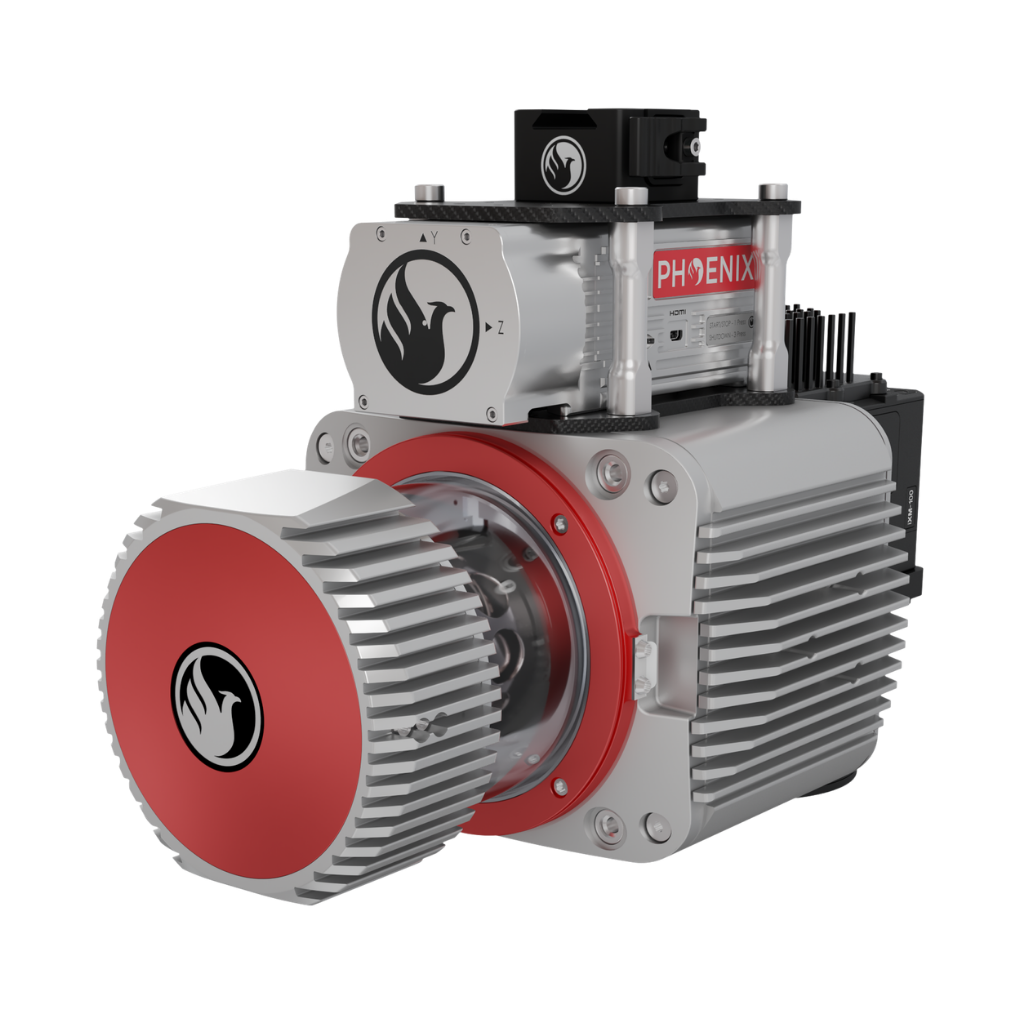

Phoenix LiDAR's Ranger LR Lite System
Ranger Lite Rear Side
REAR/RIGHT

REAR
Power Button
Status LED
GPS Antenna 1-2
Air NavBox
WiFi
Camera Mounting
