RECON-F4

A New Class of Lightweight UAV Scanner

Request a Quote Data Sheet Sample Data

Key Features

Full Specs

Dimensions

2-3.5 cm @ 120 m

RMSEz System Accuracy

2.5 cm @ 120 m

RMSDz Instraswath Precision

260 m

Max AGL @ 20% Reflectivity

1.3 kg

Weight

360°

Field of View

miniRANGER 3

0°

Scan Angle(s)

miniRANGER 3

KEY FEATURES

AIRCRAFT OPTIONS

UAV

VTOL

PRIMARY APPLICATIONS

Utilities

Rail

Construction

Mapping

Oil & Gas

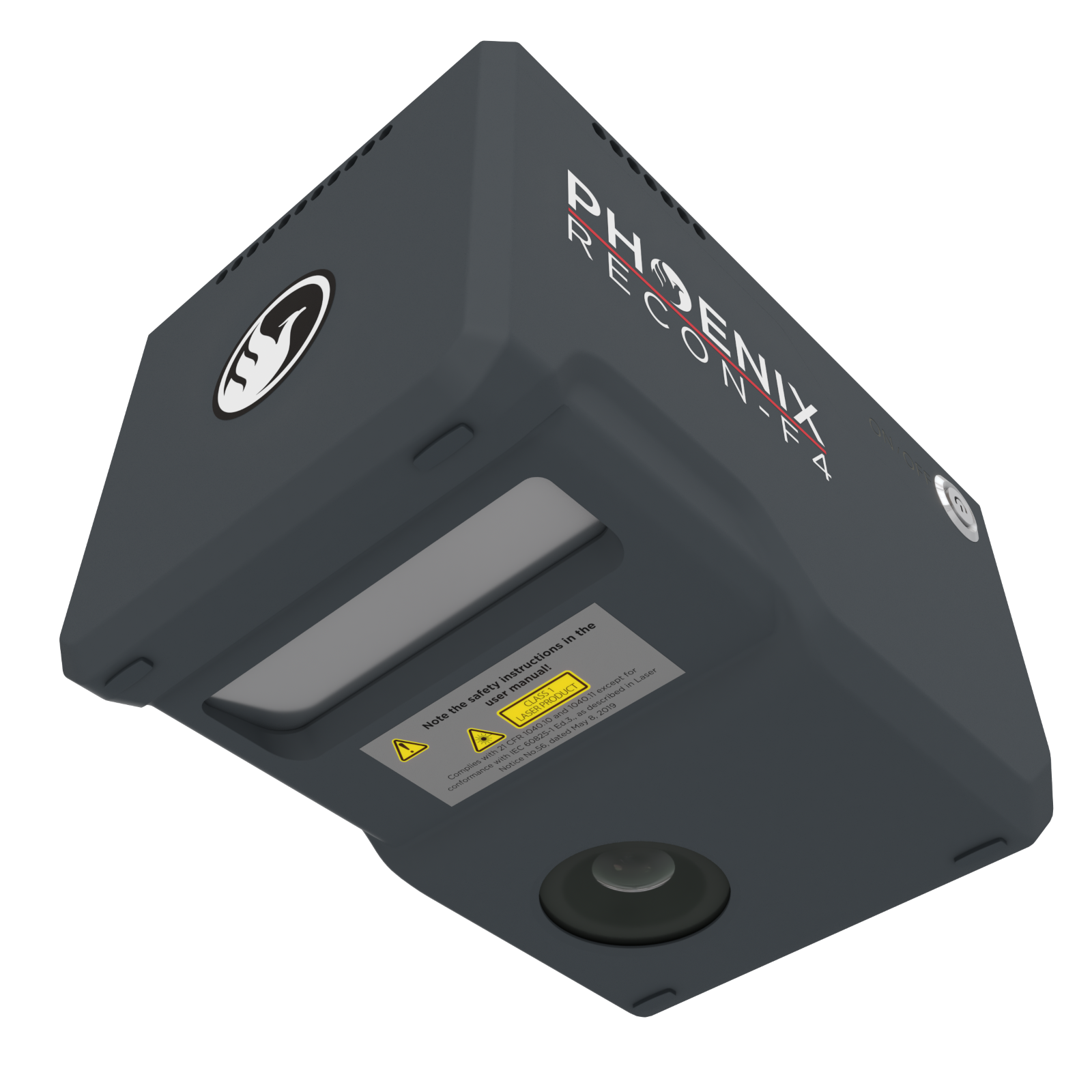

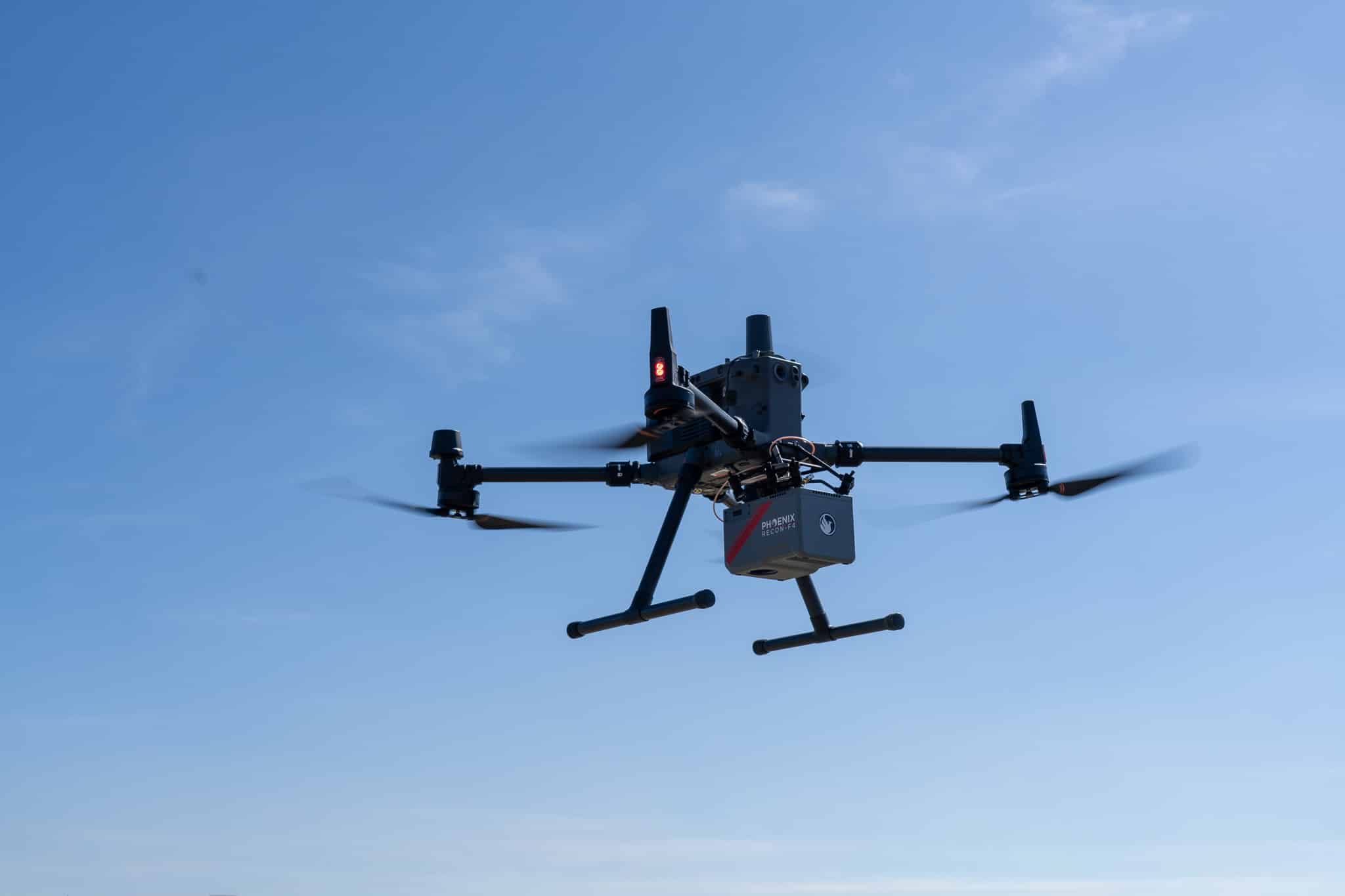

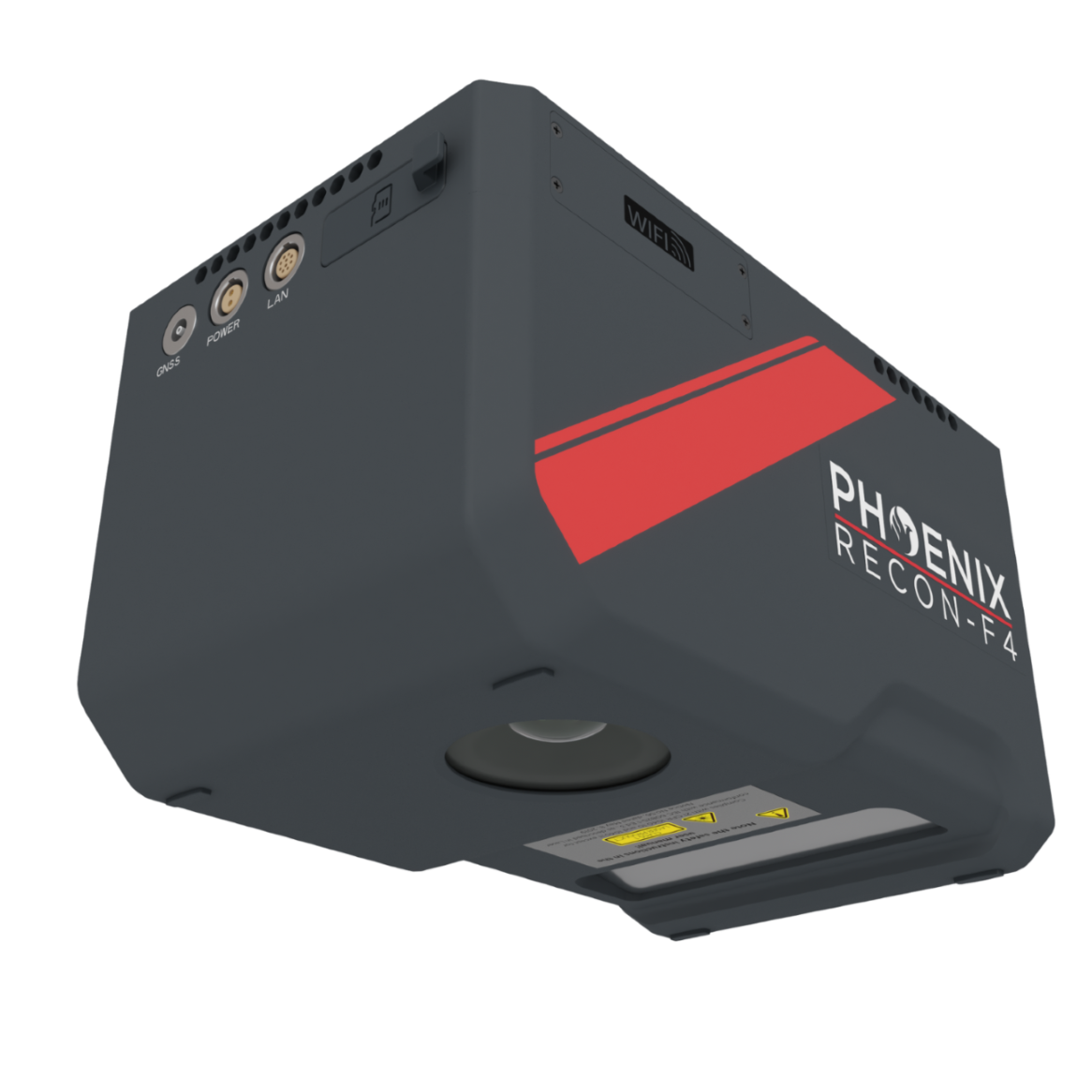

The RECON-F4 is an advanced, lightweight aerial LiDAR surveying solution designed specifically for small to mid-size drones such as the DJI M400 and Freefly Astro Max. The RECON-F4 seamlessly combines cutting-edge lightweight LiDAR technology with a high-accuracy drone optimized GNSS-INS system and an industrial-grade full-frame orthophoto camera all in a compact survey-grade 3D laser mapping solution. Combined with Phoenix LiDAR flight planning and post processing software, the RECON-F4 an efficient and cost effective solution for 3D data acquisition and processing.

Features:

Weighing in at just 1.3 kg, the Recon-F4 is ideal for small to mid-size drones such as the DJI M400 and Freefly Astro Max
Integrated 45 MP full-frame calibrated orthographic RGB camera provides high resolution image mapping textures for efficient 3D model reconstruction with realistic point cloud colorization The powerful laser range capability combined with a wide 80° horizontal field yields a 30% – 40% increase in data acquisition provides high resolution image mapping textures for efficient 3D model reconstruction with realistic point cloud colorization
The powerful laser range capability, combined with a wide 80° horizontal field yields a 30% – 40% increase in data acquisition efficiency over competing solutions

Full specifications

PLATFORM SPECS

Operating Voltage

13.7 - 32 V DC

Power Consumption

Up to 40w (36w typical)

Operating Temperature

-4° - +122° F

LiDAR SENSOR SPECS

Laser Wavelength

1535 nm (CLASS 1)

Range Maximum

360 m at 20% reflectivity, 100 kHz PRR

Scan Speed

30-300 lines/second

Horizontal FOV

80°

Pulse Repetition Rate

100 to 550 kHz

Beam Divergence

typ. 0.5 mrad @ 1/e

Minimum Range

5 m

Laser Accuracy*

10 mm One sigma @ 100 m

Laser Precision**

5 mm One sigma @ 100 m

CAMERA SPECS

Resolution

45 MP

Focal Length (FOV)

18 mm (89.84° H x 67.16° V)

Sensor Size

35.9 mm x 24 mm (8184 x 5460)

Laser accuracy is the degree of conformity of a measured quantity to its actual (true) value.
Laser precision is the degree to which further measurements show the same results

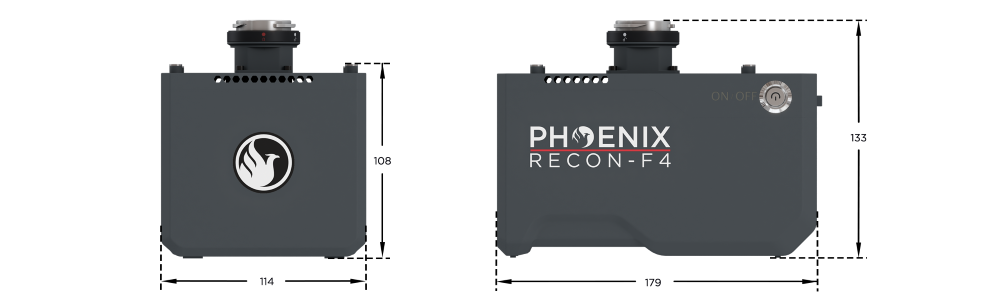

Dimensions

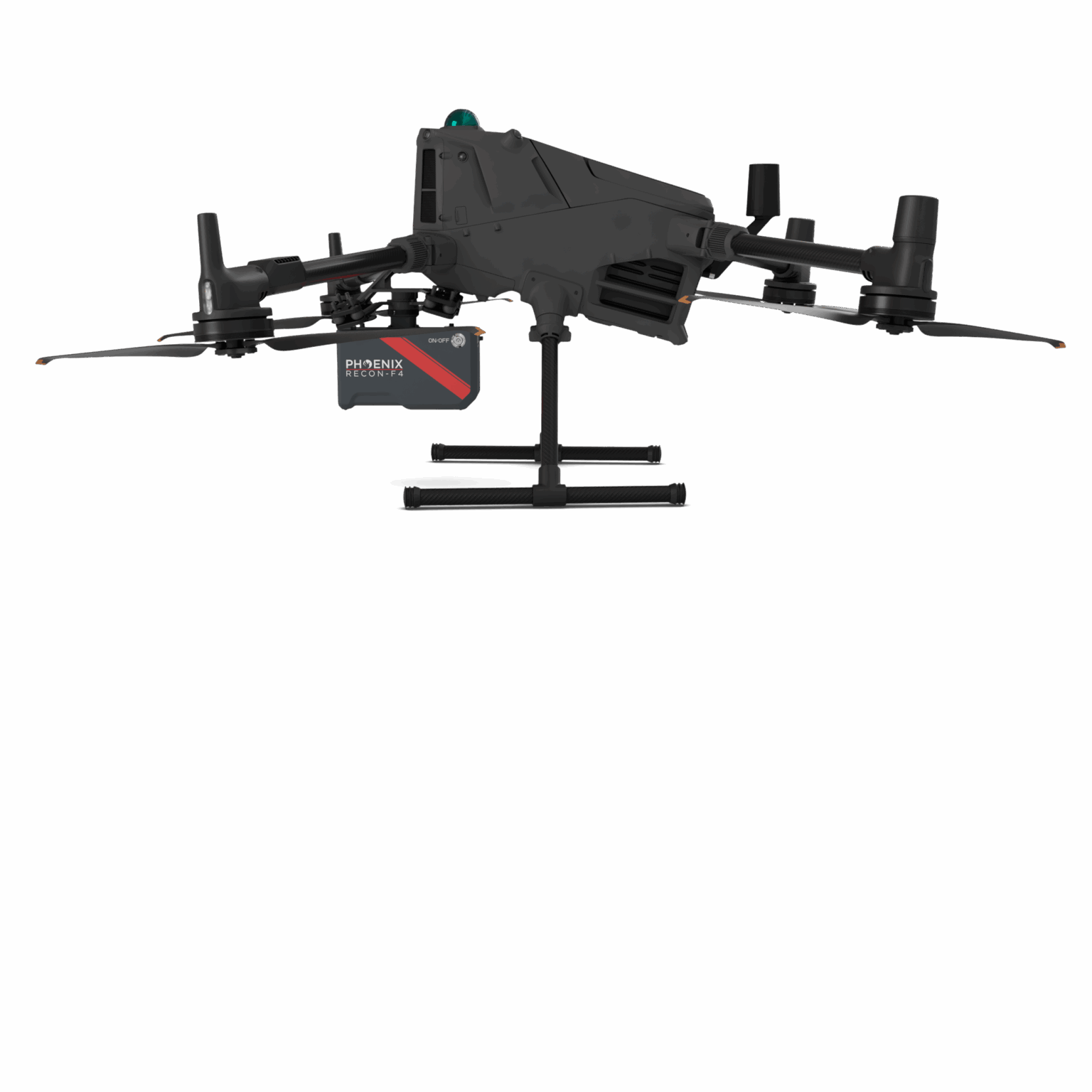

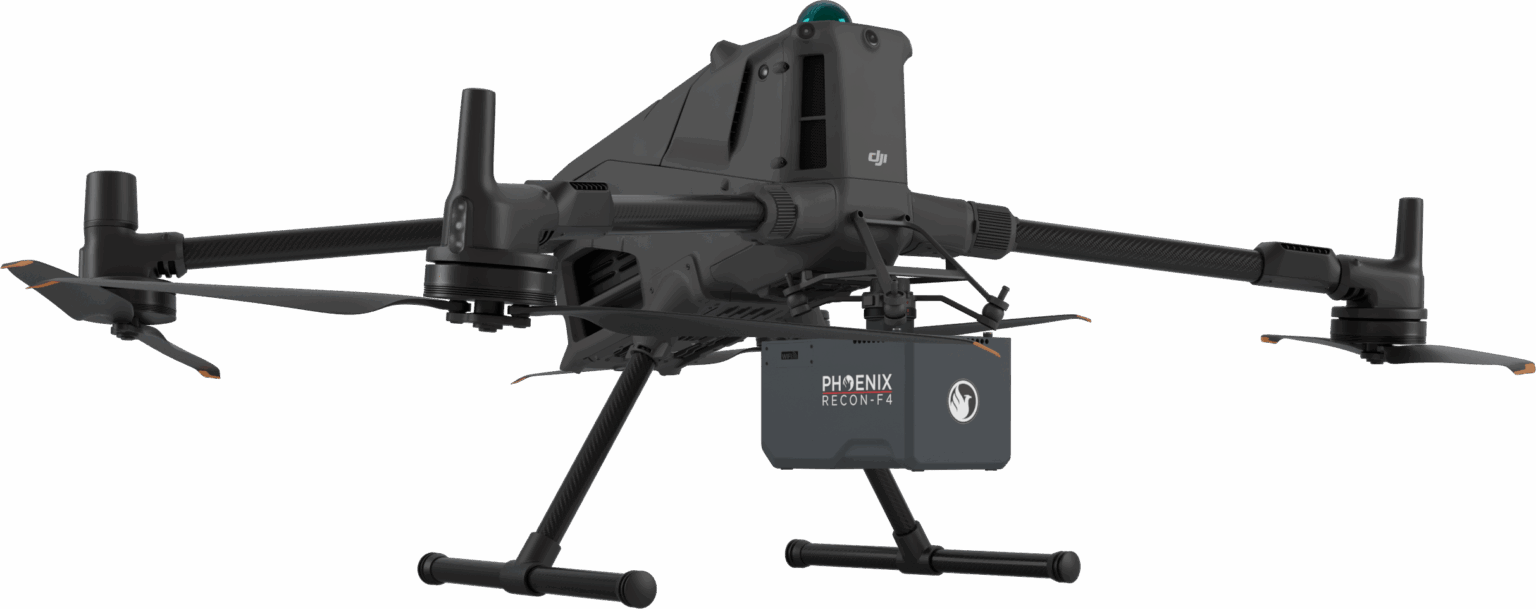

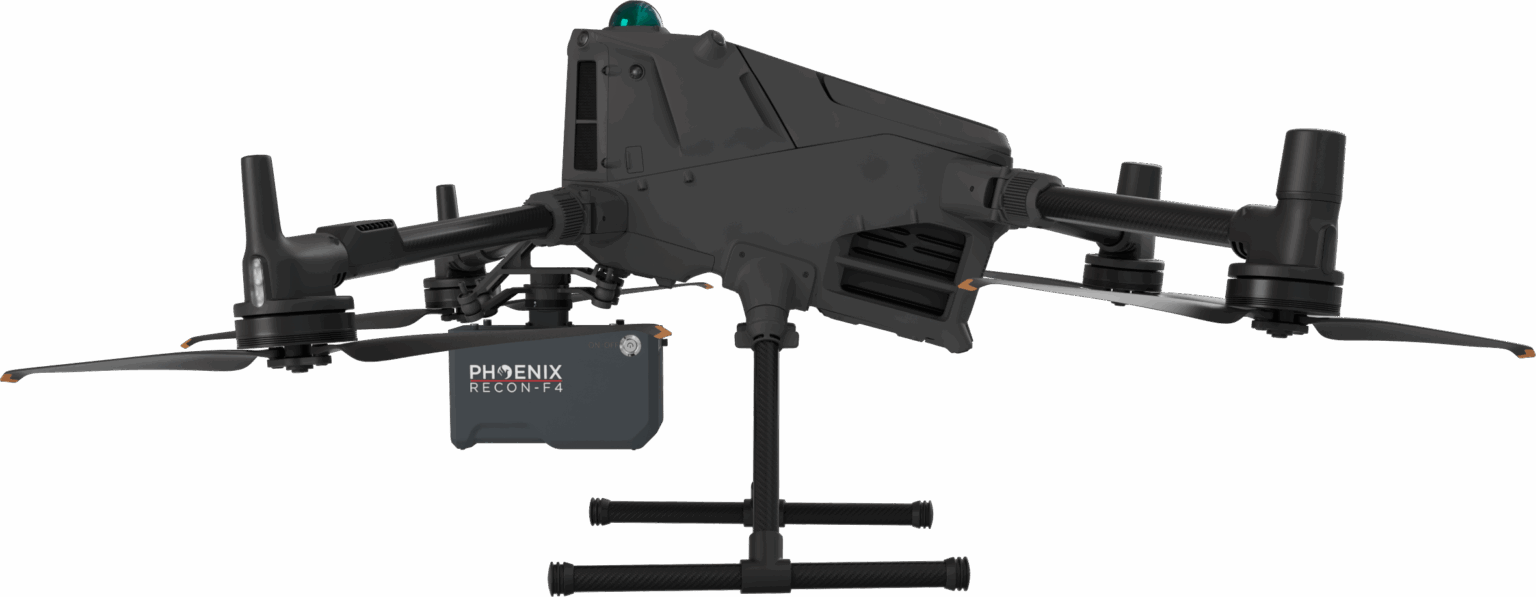

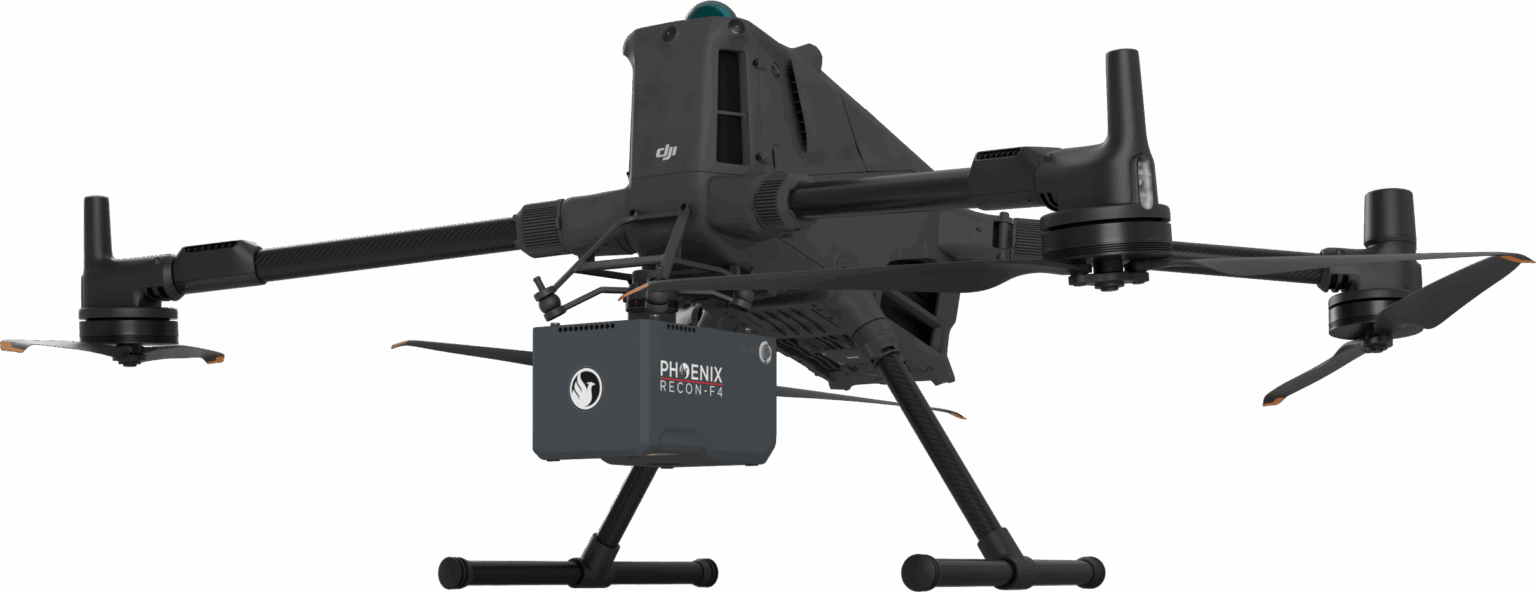

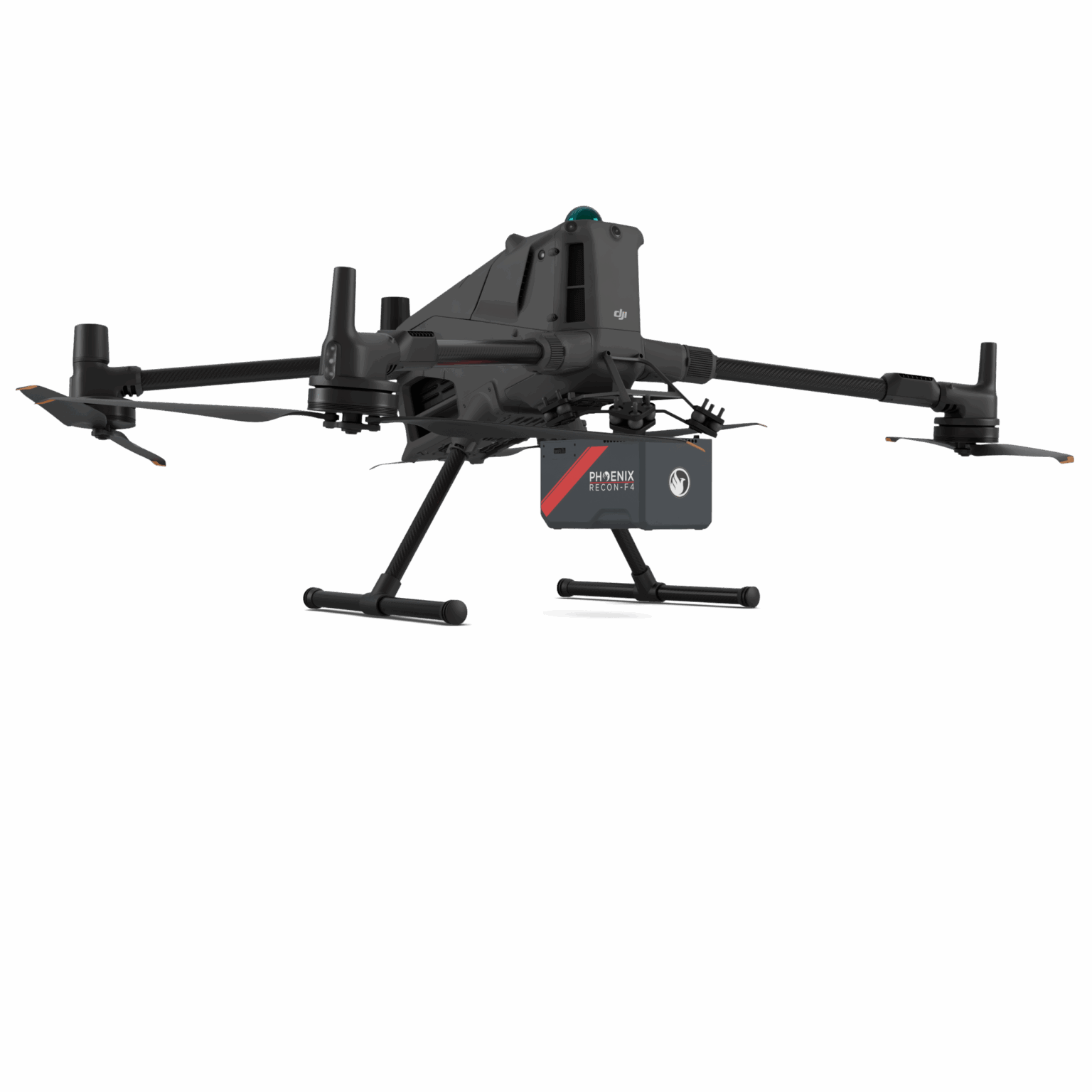

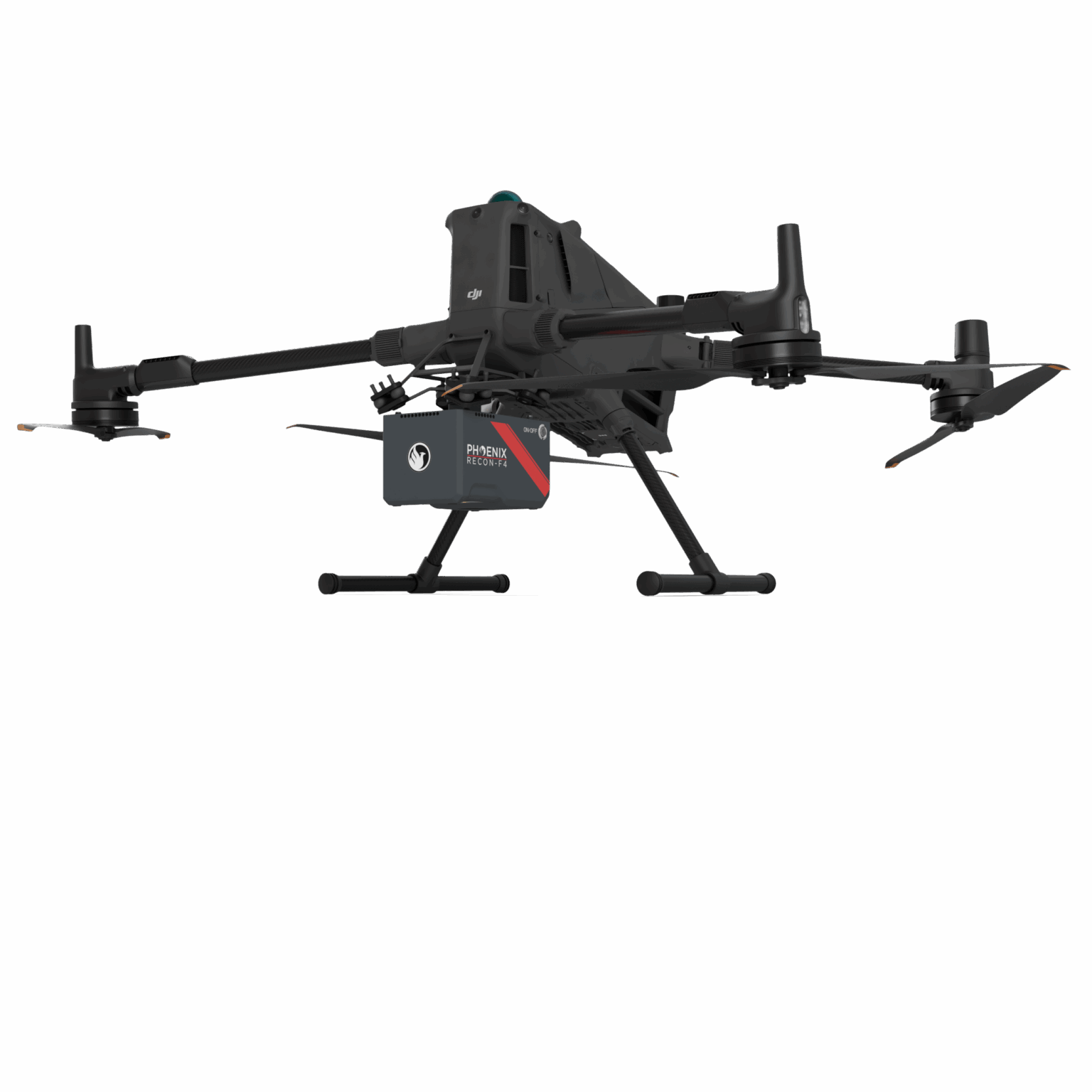

M400 Integration

Automated Post-Processing in the Cloud

CAPTURE | POST-PROCESS | ANALYZE | SHARE

Meet LiDARMill, the first cloud-based, LiDAR platform for post-processing, reporting, and hosting.

LiDARMill enables surveying teams to take advantage of precision laser mapping without investing in expensive software & training.
