RFM2-MOBILE ACCESSORY

The ideal combination of performance, flexibility and affordability
Dual LiDAR Sensor Roof Rack Vehicle Mount Accessory
2.0 cm
RMSDz @ 120 m Range*
2400 kHz
Pulse Rate
490 m
Recommended Range
755 m
@ 20% Reflectivity
17.4 kg
Weight
360°
Field of View
RFM2
60° x 40°
Scan Angle(s)
RFM2

KEY FEATURES

Vehicle
Mapping
Construction
Quick Release
Air NavBox
SE8

The RFM2-UAV22 scanner mobile accessory kit elevates the capabilities of our RANGER-UAV22 FLEX single scanner system by converting it into a high-performance dual scanner mobile system, finely tuned to meet the high standards of demanding survey-grade mapping applications.

The physical arrangement of the dual scanners is strategically designed to deliver substantial time savings on-site while ensuring comprehensive point coverage, achieving a remarkable speed of up to 2.4 million measurements per second.

The RANGER-UAV22 FLEX as well as the dual scanner mobile accessory were designed with flexibility in mind. Our standalone RANGER-UAV22 FLEX payload acts as the central control unit within our dual scanner mobile accessory and when detached, becomes a versatile tool for backpack and UAV applications, adding another layer of adaptability to your toolkit.

RMF2 Ranger Flex Dual Mobile System on Toyota Highlander

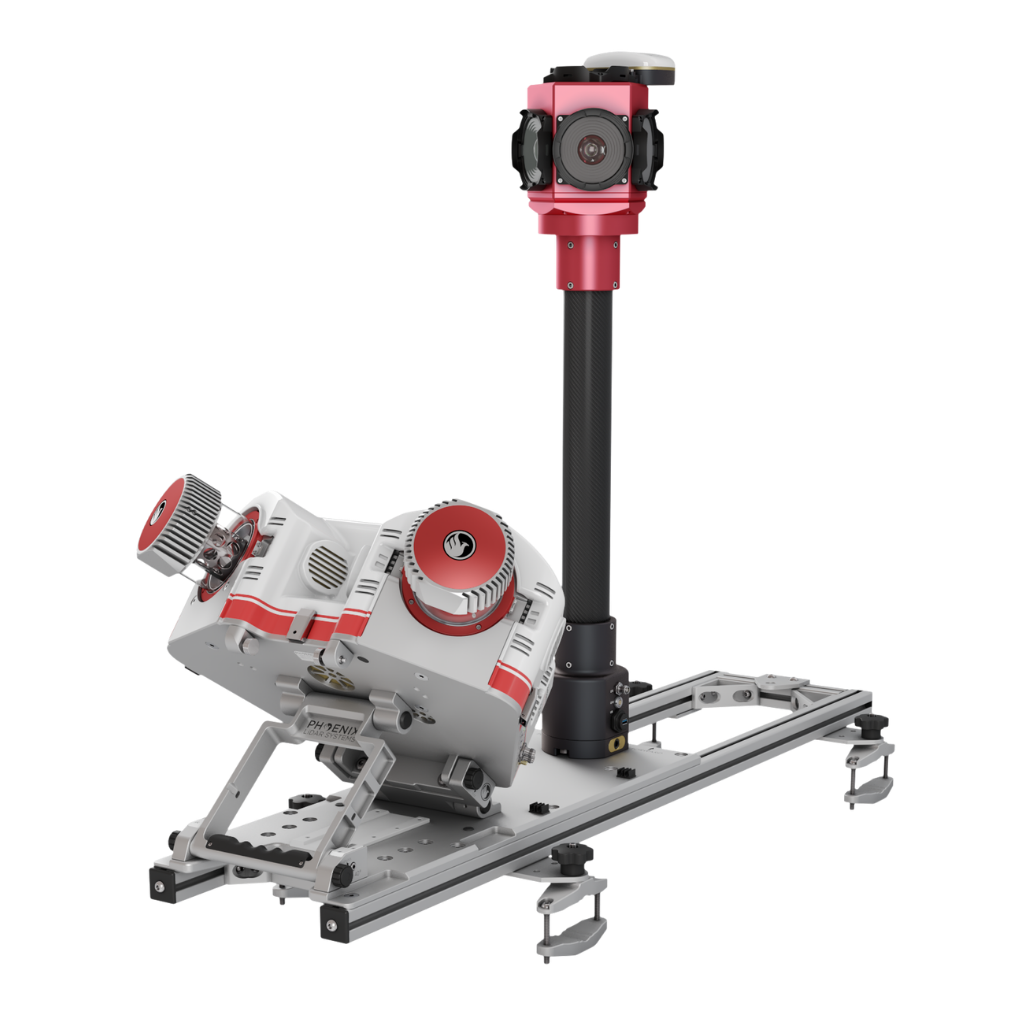

RANGER FLEX DUAL MOBILE SYSTEM RFM2-UAV22

Full specifications

Specification
Performance
Laser
1550 nm
Accuracy
20 mm
Precision
15 mm
Pulse Rate
1200 kHz x2 (2400 kHz)
Max Return Count
15
H. Field of View
360°
Accuracy Position
1 cm + 1 ppm GNSS baseline RMS horizontal
Recommended Range
490 m
Range Max at 20% reflectivity, 50 kHz PRR
755 m
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Overall Dimentions
43.2 x 53.3 x 22.8 cm
Operating Voltage
14-28 VDC
Power Consumption
160 W typical
Weight
17.4 kg / 38.4 lbs
Operating Temperature
0- +40° C

*
(1) Approximate values based on PLS test methods described at https://docs.phoenixlidar.com/accuracy-standards-and-quantifi cation.
(2) Using a 90° max downward field of view.
(3) Based on a single scanner UAV test flight.
(4) Flat surfaces with >20% reflectivity at the laser’s wavelength.
(5) Estimated post-processed accuracy with IMU-30.

Accessories & Options

Ladybug 5+ / 6
LiDAR IMU 60
IMU 60 FOG

Dimensions

RFM2 Dual LiDAR Accessory Dimensions
FRONT/LEFT

FRONT
Dual 360° FOV Laser Scanners

Bottom SIDE
Mounting Plate
0°  and 40° Mounting Angles
Cover Latches

RFM2 Front
RFM2 Rear
REAR/LEFT

Rear
Cover Latches
Cooling Vents

Left SIDE
Status LED and Power Button
DC IN
Ethernet, Camera, GPS 1/2, Wifi
