ULTRAPOD-UP1

A COMPLETE SURVEY-GRADE LIDAR SOLUTION FOR CERTIFIED CESSNA AIRCRAFT
Phoenix LiDAR Systems UltraPod System
2.5-5 cm
RMSEz @ 350 m Range
1800 kHz
Scan Rate
12 km2/h
Area Coverage
1200 m
@ 20% Reflectivity
~22 kg
Max Payload
100°
Field of View
ULTRAPOD
Scan Angle(s)
ULTRAPOD

KEY FEATURES

Airplane








Utilities
Rail

Oil & Gas
Mapping

Forestry


Quick Release


Air NavBox


SE8



The NEW ULTRAPOD from Phoenix LiDAR Systems is a complete, turn-key, aerial solution designed to adapt to a wide range of mapping and survey missions.

This lightweight and robust composite housing is FAA and EASA approved for Cessna 172, 182, and 206 aircraft, giving operators a user-friendly, flexible mounting solution for LiDAR payloads and cameras.

Cessna aircraft with UltraPod by Phoenix LiDAR
The ULTRAPOD UP1 is designed for mounting on a wide variety of Cessna aircraft including 172, 182, and 206 models.

Full specifications

Specification
Performance
Laser
1550 nm
Accuracy
20 mm
Precision
15 mm
Laser Pulse Repetition Rate PRR (1)
1800 kHz
Max. Number of Targets per Pulse (5)
15
Field of View
75°
PP Attitude Heading RMS Error
0.010° / 0.019° IMU options
Max. Operating Flight Altitude AGL (2) (4)
900 m
Max. Measuring Range (2) (3) @ 20% Reflectivity
1200 m
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Overall Dimentions
113.0 x 36.4 x 35.0 cm
Operating Voltage
18-28 VDC
Power Consumption
85 W
Max Weight
22.6 kg / 50.0 lbs
Operating Temperature
0 - +40° C

(1 ) Rounded average PRR.
(2) Typical values for average conditions and average ambient brightness. In bright sunlight, the max. range is shorter than under an overcast sky.
(3) The maximum range is specified for fl at targets with size in excess of the laser beam diameter, perpendicular angle of incidence, and for atmospheric visibility of 23 km. Range ambiguities have to be resolved by multiple-time-around processing.
(4) Effective FOV 75°, additional roll angle ± 5°.
(5) If the laser beam hits, in part, more than one target, the laser‘s pulse power is split accordingly. Thus the achievable range is reduced.

Accessories & Options

NavBox Render
IMU Upgrade
Phoenix LiDAR Systems Care Logo
PLS Care

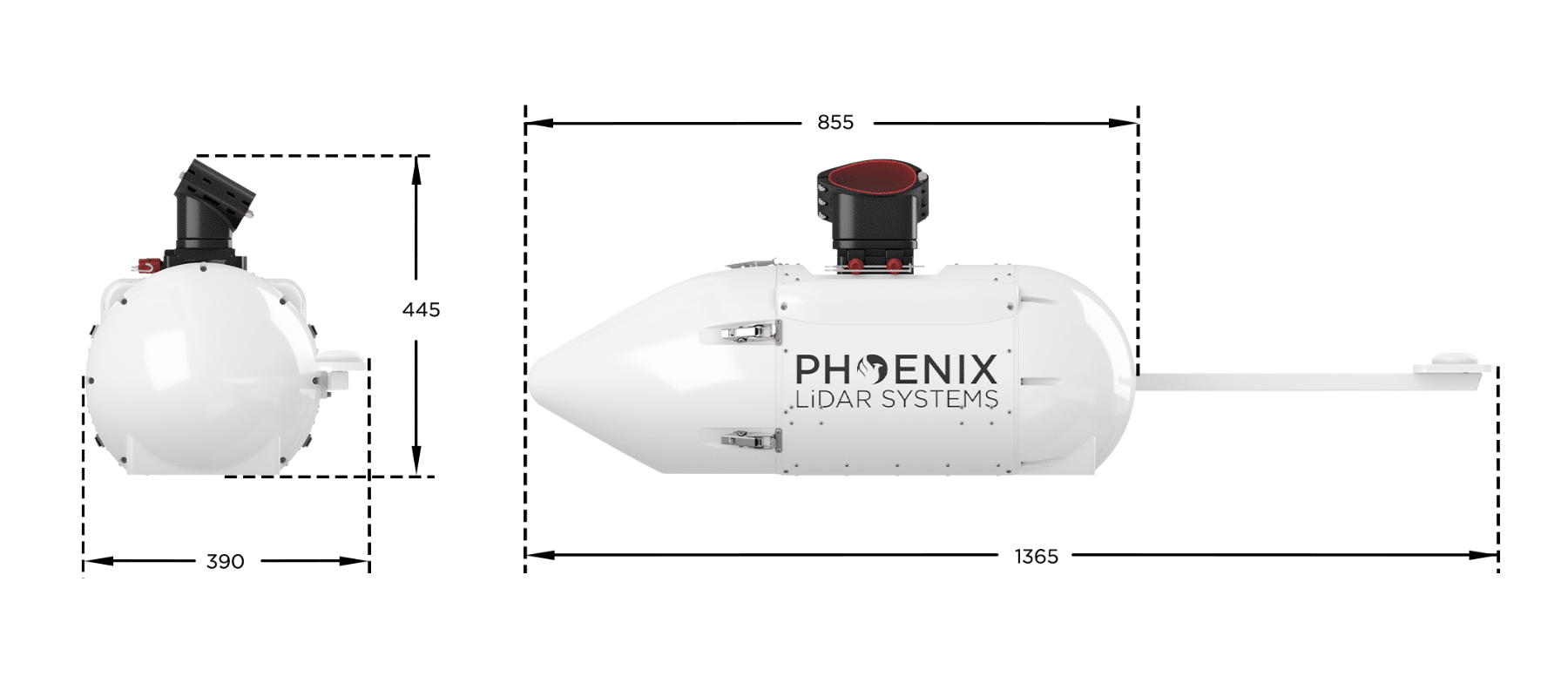

Dimensions

UltraPod by Phoenix LiDAR dimensions
REAR/RIGHT

REAR

RIGHT
Umbilical Ports

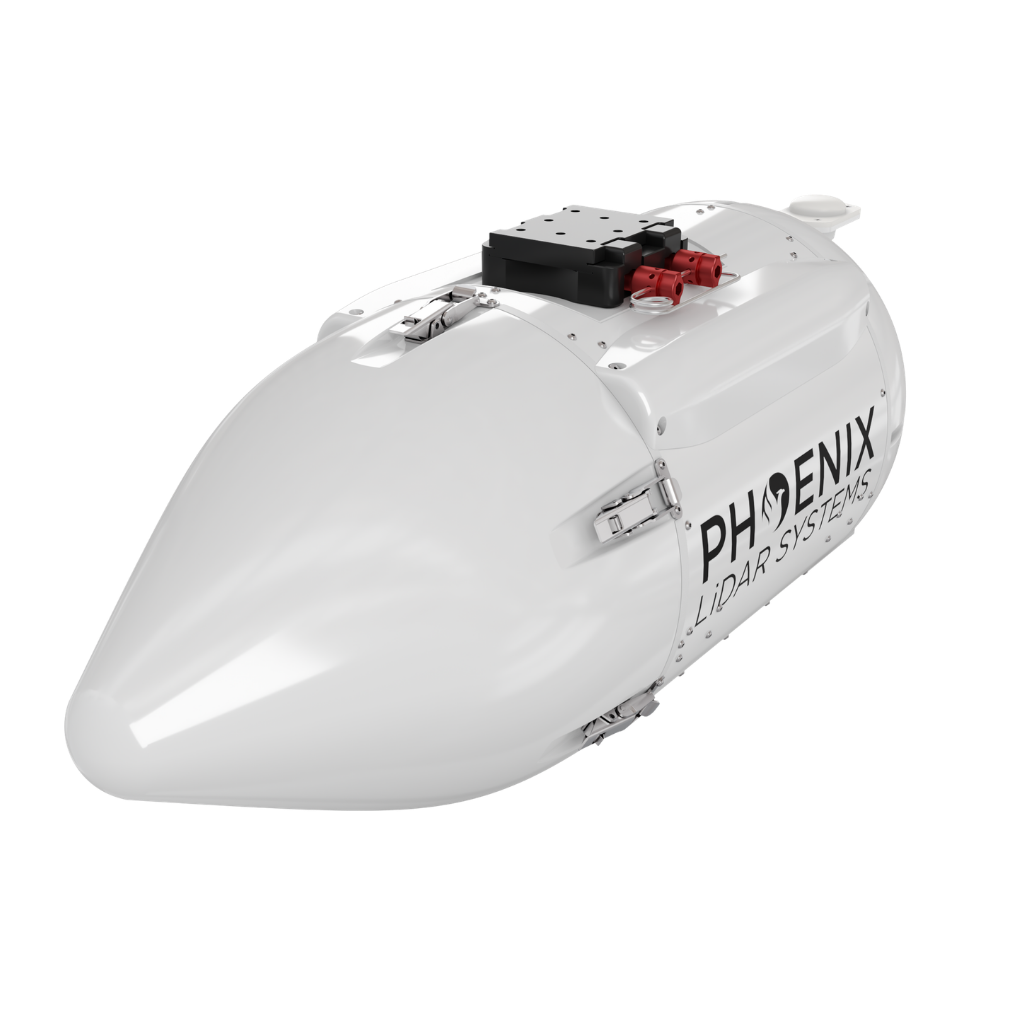

Phoenix LiDAR Systems UltraPod System
Fixed wing manned aircraft integration kit for Cessna aircrafts
FRONT/LEFT

FRONT
Camera Port
Laser Port

LEFT
Antenna Boom
