HALO-H

THE ULTIMATE CITY SCALE MAPPING SYSTEM
3D Render of the Halo H LiDAR System
6 cm
RMSEz @ 750 m Range
1600 kHz
Pulse Rate
4630 m
Rec. Max AGL
4330 m
@ 20% Reflectivity
~30 kg
Weight
80°
Field of View
HALO H
Scan Angle(s)
HALO H

KEY FEATURES

Helicopter
Airplane
Oil & Gas
Utilities
Construction
Mapping
Forestry
Quick Release
Air NavBox
SE8

The HALO series LiDAR scanners are made for high-altitude, high-efficiency mapping. City-scale LiDAR projects are easily achievable with swath widths reaching 4,000 m. Selectable measurement rates up to 1 MHz and line speed up to 250 per second can be tuned to meet challenging pulse density specifications.

The HALO-H is available in two different models; the HALO-15H and the longer-range HALO-30H.

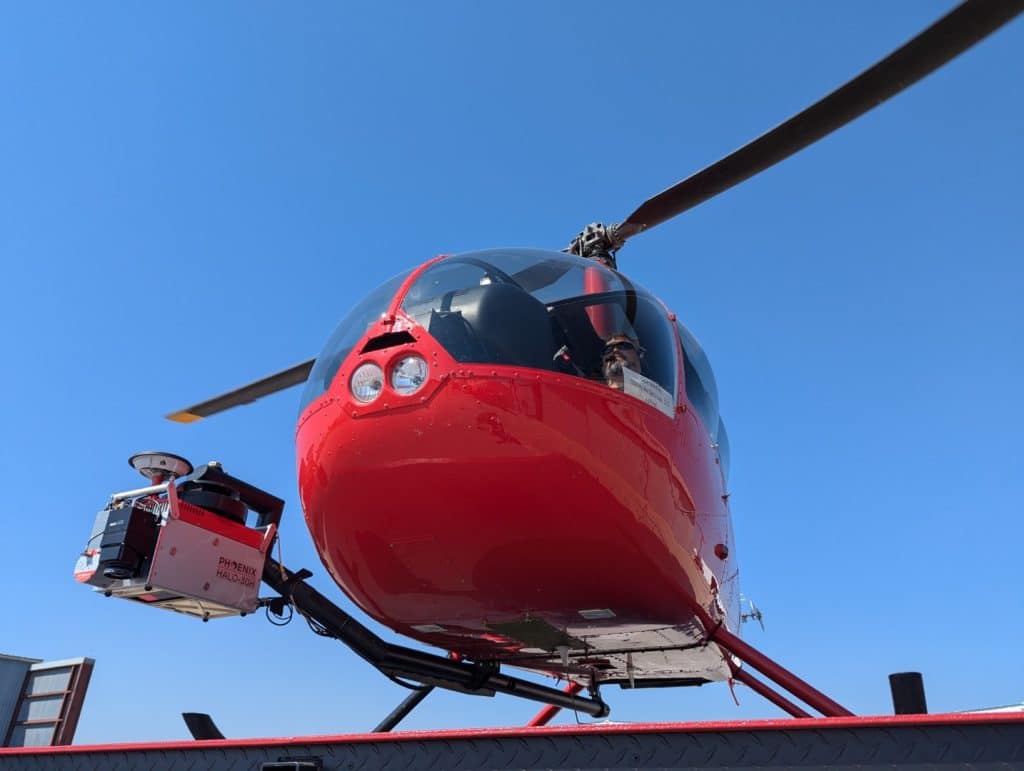

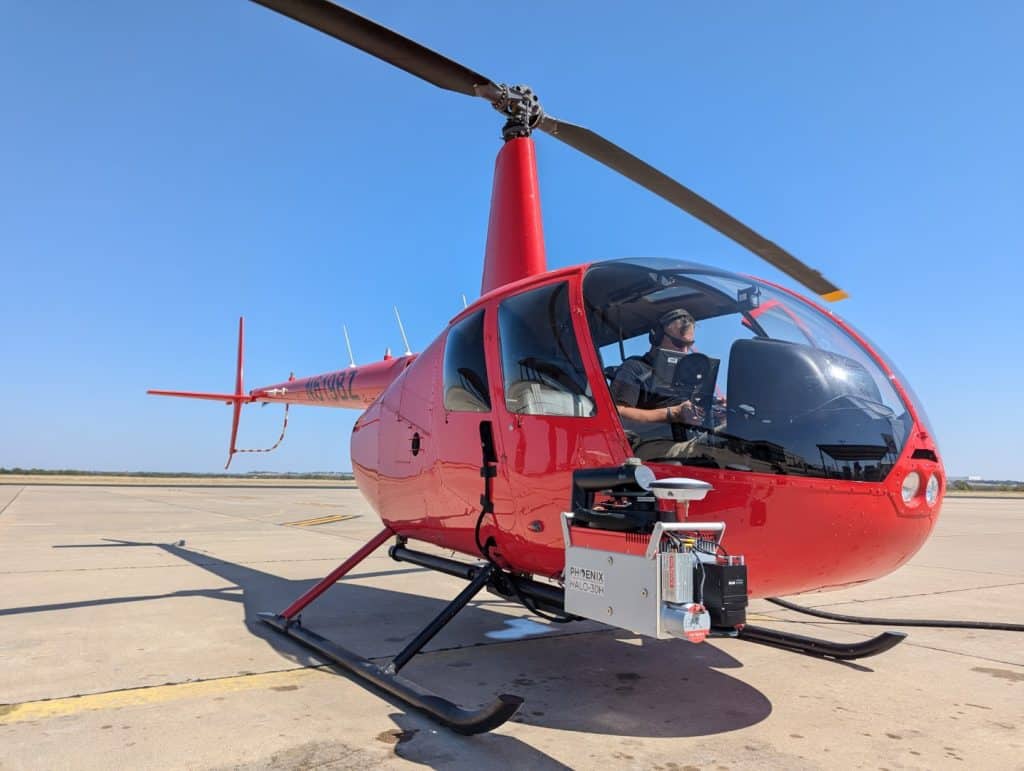

Halo H LiDAR System mounted on Helicopter

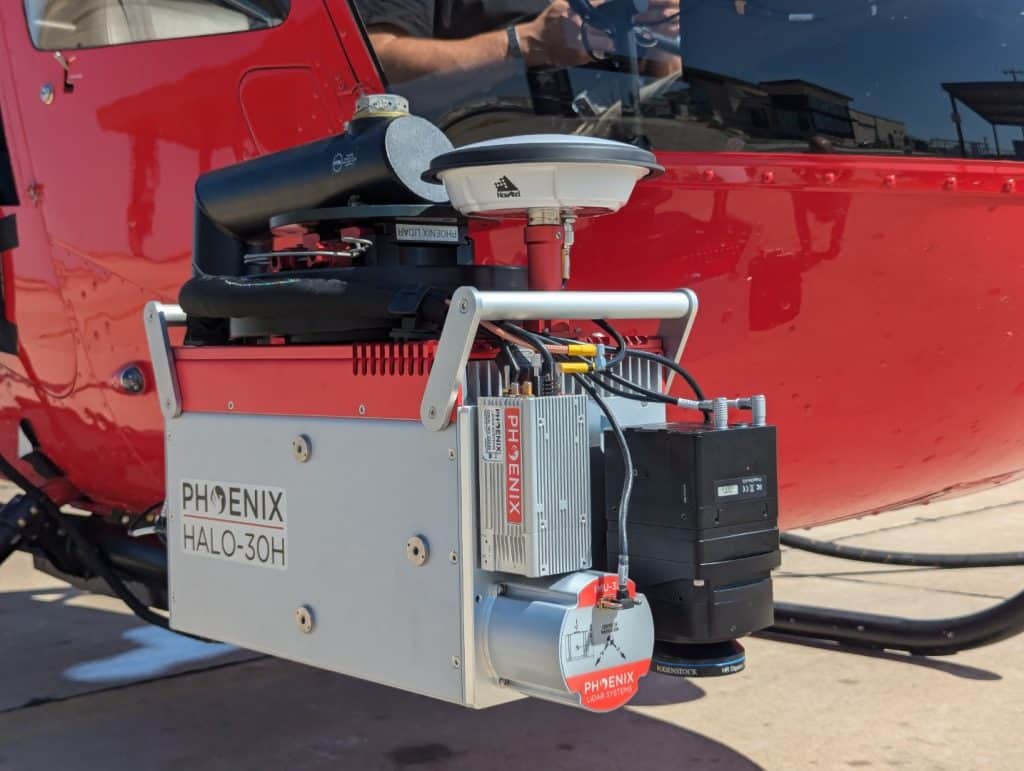

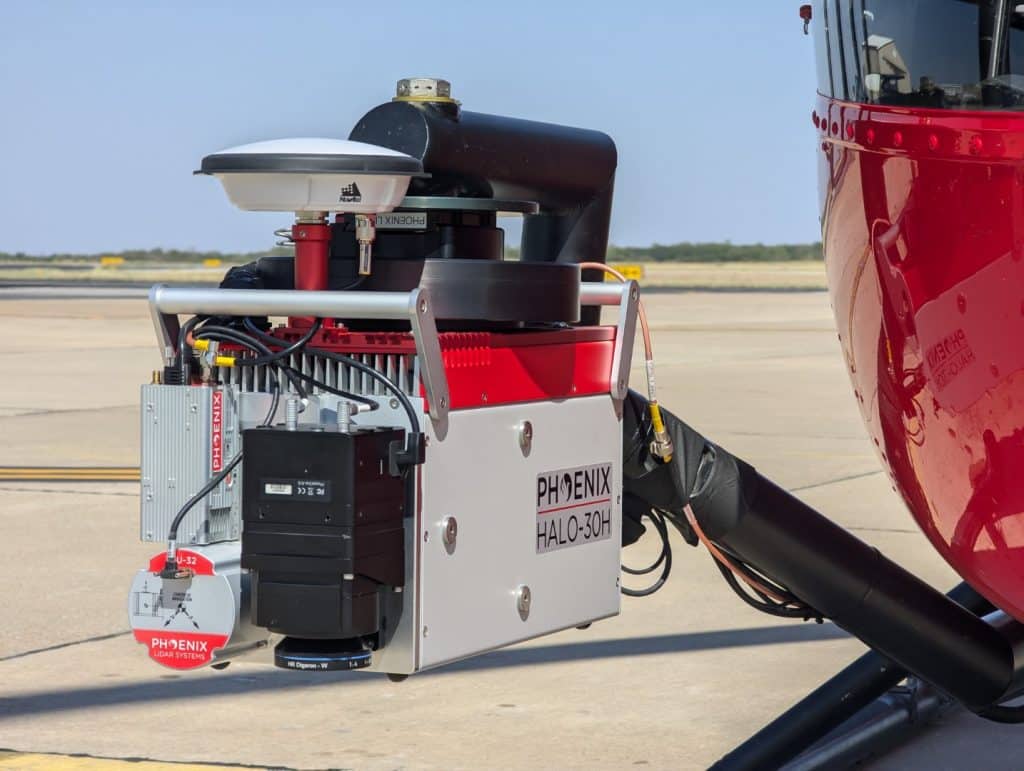

The HALO H in aerial configuration easily integrates on the ROBINSON R44 and other manned helicopters.

Full specifications

Specification
Performance
Laser
1030 nm
Scan Speed
20 - 250 lines/second
Beam Count
4 facet pyramidal mirror
Pulse Repetition Frequency
100 - 1600 kHz
Max Return Count
Virtually Unlimited
H. Field of View
10° - 80°
Accuracy Position
1 cm + 1 ppm GNSS baseline RMS Horizontal
Max. Operating Flight Altitiude
2670 (15H) / 4630 (30H) m
Max. Measuring Range at 20% Reflectivity
2500 (15H) / 4330 (30H) m
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Overall Dimensions
51.9 x 21.6 x 24.8 cm
Operating Voltage
18-28 VDC
Power Consumption
Max. 155 W
Weight
30 kg / 66 lbs
Operating Temperature
0 - +40° C

(1) 100% laser power
(2) 80° field of view
(3) NOHD & ENOHD determined for non-overlapping beam footprints.

Accessories & Options

Halo H LiDAR System mounted on Helicopter
Heli Mount
Halo H LiDAR System with Camera options
Camera Options
NavBox Render
IMU Options
Phoenix LiDAR Systems Care Logo
PLS Care

Dimensions

Halo-H Dimensions
FRONT/LEFT

FRONT
Laser Scanners
GPS Mount
IMU
Camera Mount

LEFT SIDE
Accessory Mounting

3D Render of the Halo H LiDAR System
Halo-H LiDAR System - Left side
REAR/RIGHT

REAR
Power Button
Status LED
GPS Antenna 1-2
USB
Ethernet

RIGHT
Accessory Mounting
