RANGER-UAV22 FLEX

FLY IT, DRIVE IT, MOUNT IT ANYWHERE - THE MOST ADAPTABLE MAPPING SYSTEM
Phoenix LiDAR's Ranger Flex System
1.5-3 cm
RMSEz @ 120 m Range
1200 kHz
Pulse Rate
490 m
Rec. Max AGL
755 m
@ 20% Reflectivity
4.7 kg
Weight
360°
Field of View
RANGER UAV FLEX
Scan Angle(s)
RANGER UAV FLEX

KEY FEATURES

UAV
VTOL

Vehicle


Backpack


Utilities
Rail

Construction
Mapping

Oil & Gas


Quick Release


Flex Pack


SE8



The RANGER-UAV22 FLEX is our most versatile system, capable of seamlessly integrating into various platforms such as backpacks, UAVs, and dual-head mobile scanning solutions. The high pulse rate measurement capability ensures exceptional precision in data collection. Whether you’re embarking on high-density UAS missions, tackling detailed mobile mapping projects, or conducting surveys with low-altitude piloted aircraft, the RANGER-UAV22 FLEX is up to the task.

This system is available in UAV, VTOL, helicopter, vehicle, backpack, and our ALL NEW RANGER FLEX DUAL MOBILE SYSTEM accessory configurations, depending on your needs.

Ranger Flex LiDAR System Integrations and Accessories

Full specifications

Specification
Performance
Laser
1550 nm
Beam Divergance
1.5 m at ≥1 MHz PRR
Scan Speed
10 - 200 lines/second
Laser Pulse Repetition Rate PRR (1) (5)
1200 kHz
Max Return Count
15
Horizontal Field of View
360°
Accuracy Position
1 cm + 1 ppm GNSS baseline RMS horizontal
Max. Operating Flight Altitude AGL (2) (5)
490 m
Max. Measuring Range (3) (4) at 20% Reflectivity
755 m
Constellation Support
GPS, GLONASS, BEIDOU, GALILEO
Overall Dimentions
27.9 x 20.9 x 17.3 cm
Operating Voltage
14-28 VDC
Power Consumption
75 W typical
Weight
5.7 kg / 10.3 lbs
Operating Temperature
0 - +40° C

(1) Rounded values.
(2) Setting of intermediate PRR values possible.
(3) Typical values for average conditions. Maximum range is specifi ed for fl at targets with size in excess of the laser beam diameter, perpendicular angle of incidence, and for atmospheric visibility of 23 km. In bright sunlight, the max range is shorter than under overcast sky.
(4) Ambiguity to be resolved by post-processing.
(5) Flat terrain assumed, scan angle +/- 45°.
(6) If more than one target is hit, the total laser transmitter power is split and, accordingly, the achievable range is reduced.

Accessories & Options

Ranger UAV 22 Flex with Drone Integration
Drone Kits
Ranger UAV 22 Flex System Camera Options
Camera Options
Ranger UAV 22 Flex Backpack integration kit
Backpack
Ranger UAV 22 FLex
Dual Mobile
360 Camera

Dimensions

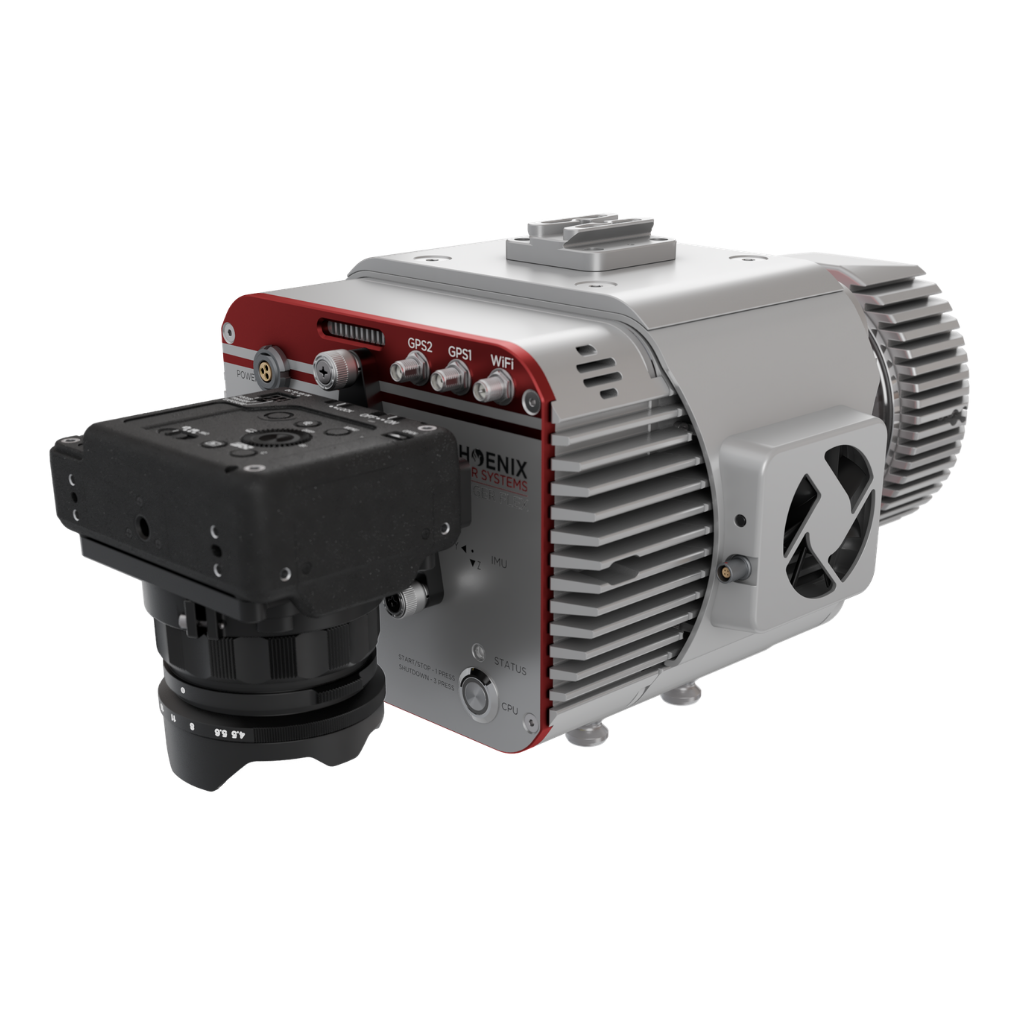

REAR/RIGHT

REAR
Power Button
GPS 1-2
Wifi
Status LED
Camera Mounting

RIGHT
Cooling Fan

Phoenix LiDAR's Ranger Flex System

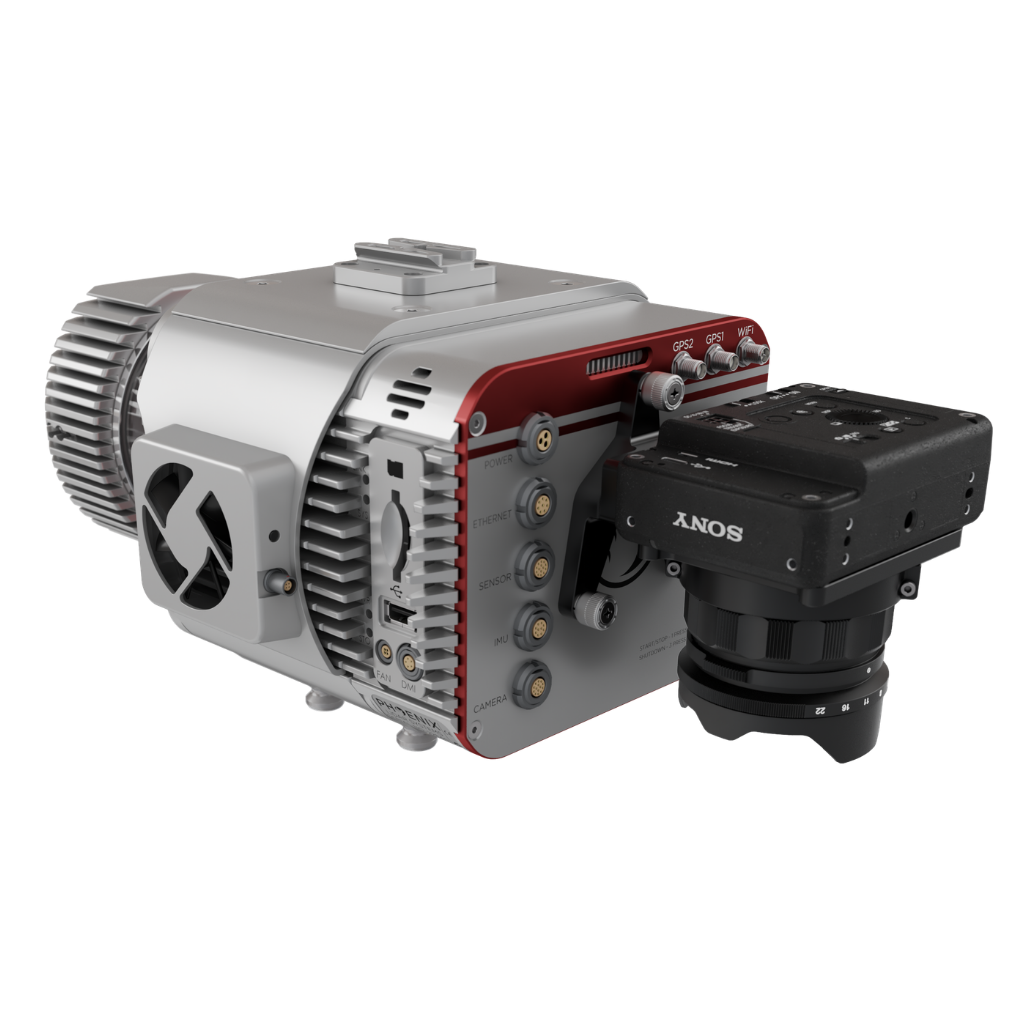

REAR/LEFT

REAR
Power Connection
Ethernet
Dual LiDAR Sensor Port
IMU
Camera Port

LEFT SIDE
DMI
SD Card
Cooling Fan
