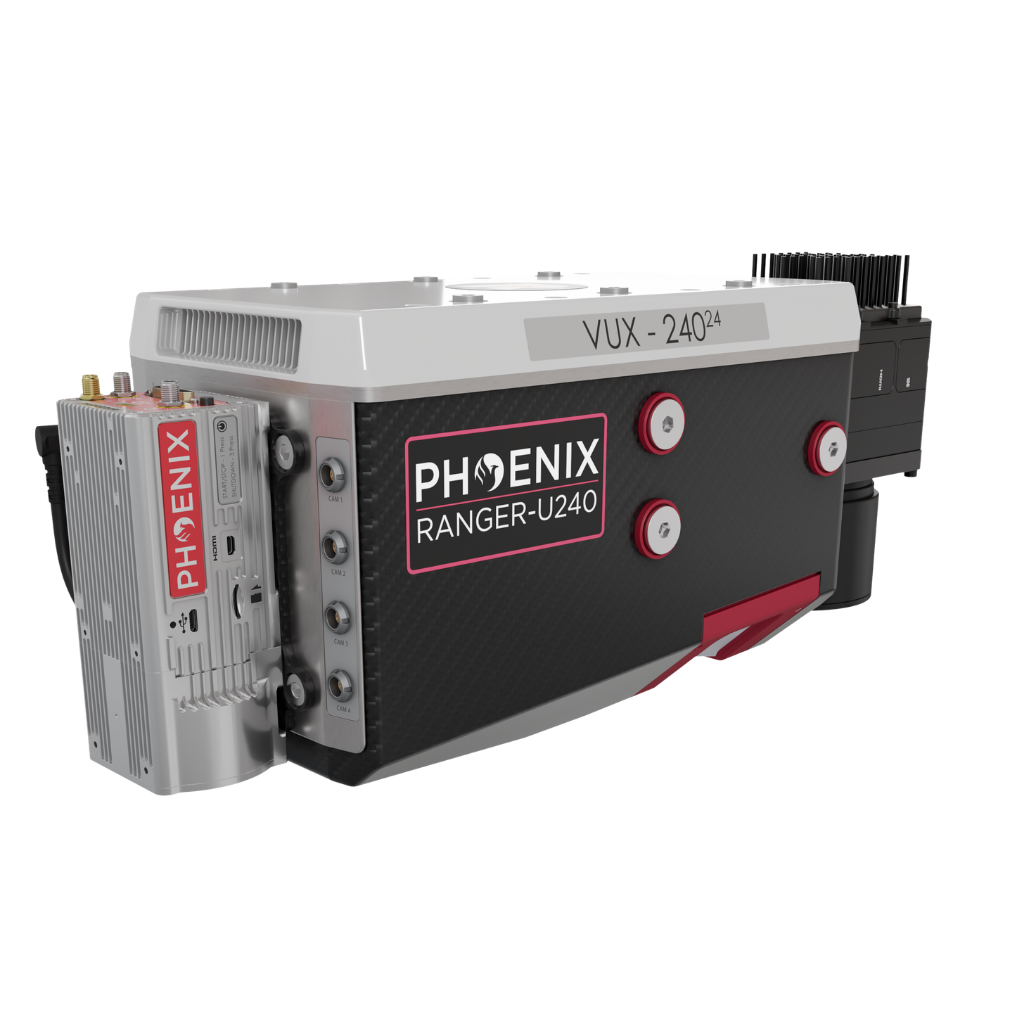

RANGER-U240
KEY FEATURES
The Ranger-U240 is a lightweight airborne laser scanner, specially designed for use on UAS and small manned airplanes or helicopters. With its wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1800 kHz, the Ranger-XL is perfectly suited for high point density corridor mapping applications such as power line, railway track, and pipeline inspection.
Phoenix offers several Ranger-U240 camera accessories as well as UAV and manned aircraft attachment options. Please contact us to learn more about this amazing member of the Ranger series!
Full specifications
(1 ) Rounded average PRR.
(2) Typical values for average conditions and average ambient brightness. In bright sunlight, the max. range is shorter than under an overcast sky.
(3) The maximum range is specified for flat targets with size in excess of the laser beam diameter, perpendicular angle of incidence, and for atmospheric visibility of 23 km. Range ambiguities have to be resolved by multiple-time-around processing.
(4) Effective FOV 75°, additional roll angle ± 5°.
(5) If the laser beam hits, in part, more than one target, the laser‘s pulse power is split accordingly. Thus the achievable range is reduced.
Accessories & Options

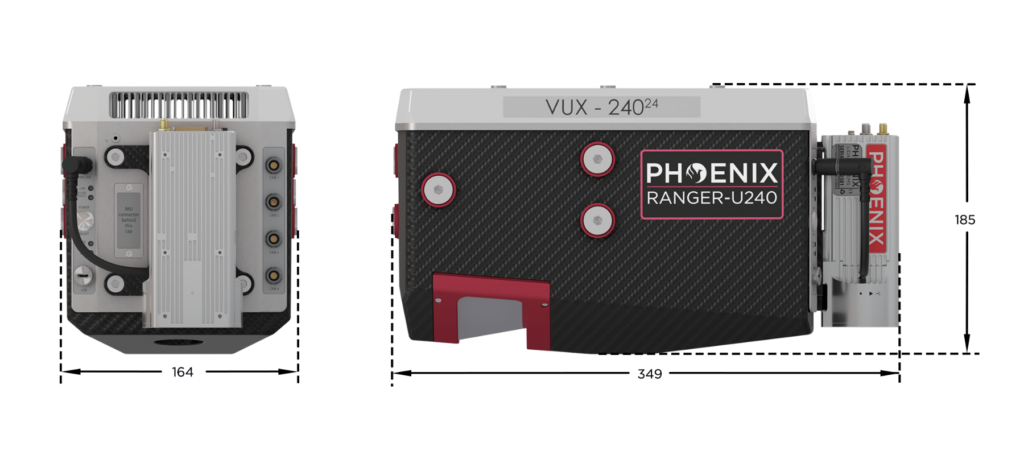

Dimensions
Rear/Right
REAR
Air NavBox
RIGHT
Accessory Mounts
SD Card
USB
Rear/Left
REAR
Air NavBox
LEFT
Accessory Mounts
Power Button
Status LED
GPS Antenna 1-2
WiFi
